Weight Options

Three standard wheel loads normally specified for the Taber® Rotary Platform Abraser (Abrader) are 250 grams, 500 grams, or 1000 grams.  This reference is per arm (not combined) and does not include the mass of the abrading wheel.

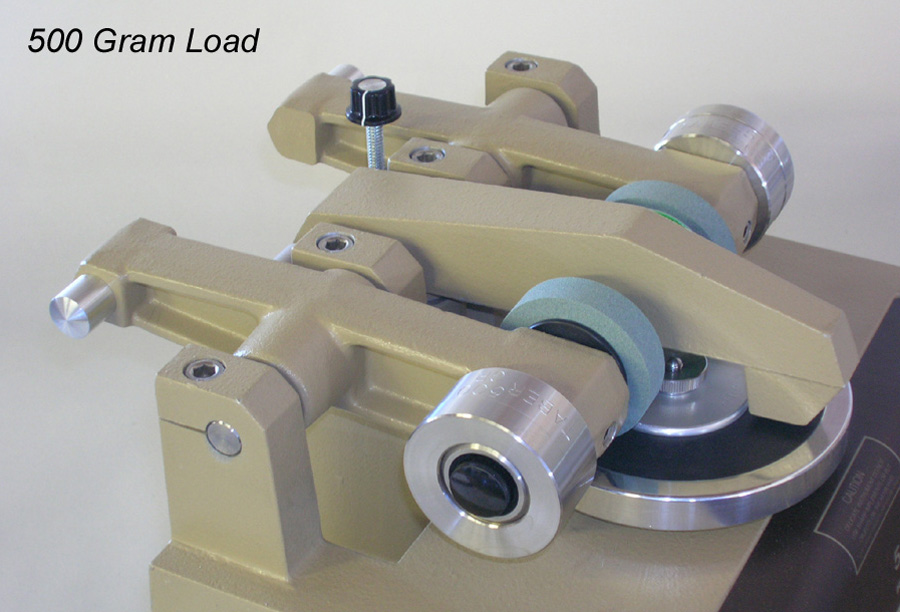

With no auxiliary weights, each abraser arm applies a load of 250 grams to the wheel contacting the specimen.  When added to the mass of the abrading arm, precision stainless steel weights provide total loads of either 500 or 1000 grams.  An optional weight set that provides a load of 750 grams per wheel is also available.  For simplicity's sake, each weight is marked with the total load that will be exerted on the wheel (the total of both the weight and the abrading arm).  The weights marked 500 grams are actually 250 grams.  Likewise, the weights marked 1000 grams are 750 grams.

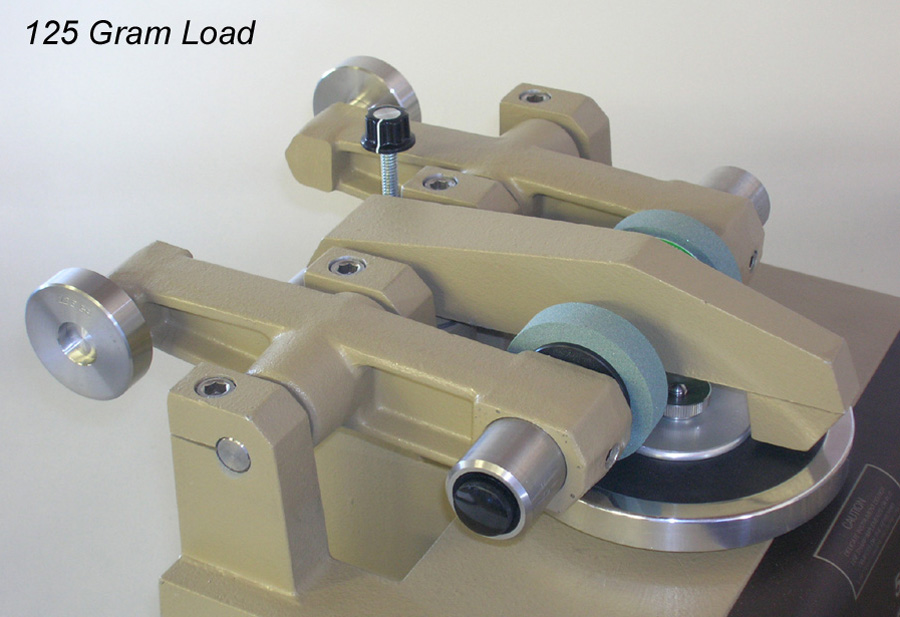

Counterweights are also available to further expand the range of wheel loads, and may be used in conjunction with the standard weights.  Taber Abraser Model 1700/1750 requires the Counterweight Arm Kit which provides 50g counterweight and includes a counterweight to achieve 125g counterweight per abraser arm.  Optional counterweights are available to achieve 150g or 175g counterweight.  For older style Taber Abrasers, counterweights are applied to the mounting stud found on the back of the abraser arm and are available as 50g, 125g, 150g or 175g.  To offset the weight of the working wheels, wheels may be placed on the counterweight-mounting studs.

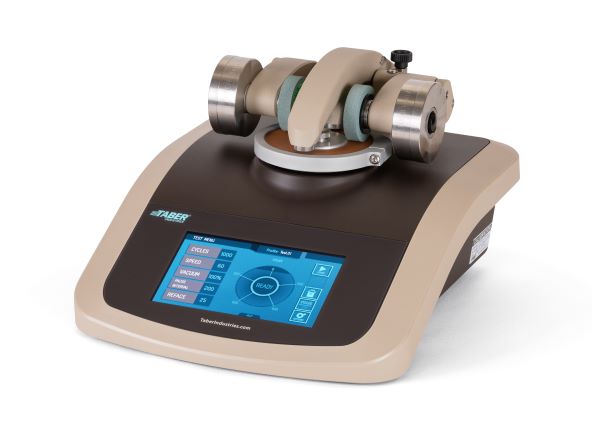

Taber Abraser with 1000 Gram Load

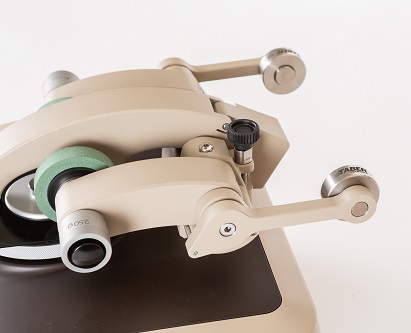

Taber Abraser 1700 with Counterweight Arm



Desired Load

Accessory Weight

Counterweight

75g

none

175g

100g

None

150g

125g

none

125g

200g

none

50g

250g

none

none

325g

500g

175g

350g

500g

150g

375g

500g

125g

450g

500g

50g

500g

500g

none

575g

750g

175g

600g

750g

150g

625g

750g

125g

700g

750g

50g

750g

750g

none

825g

1000g

175g

850g

1000g

150g

875g

1000g

125g

950g

1000g

50g

1000g

1000g

none

Accessory Weights are marked with the total load that will be exerted and include the weight of the abrading arm



If no wheel loading is specified in the test method, an appropriate load may be determined through experimentation.  For statistically significant results, it is recommended that a minimum number of test cycles (e.g. 100 - 300 cycles) be completed before the end point occurs.
